MPI High Power Probe Systems

MPI high power probing solutions offer variety of probing systems which include manual, automated and fully-automated versions to provide solution for different budgets and specific requirements. Manual high power systems provide flexibility and cost-effective solutions for research institutes, universities, and foundries that need complex and accurate device characterization but not require to do high volume measurements. These systems are designed to connect with advanced high power measurement instruments to support advanced research works, without compromising the usability, safety and the measurement accuracy up to 3 kV (triax) / 10 kV (coax) and 600 A (pulsed). MPI automated high power systems provide automated high through-put measurements by programming step-and-repeat functionality through MPI SENTIO® prober control software.

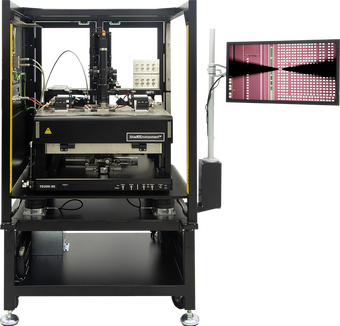

TS2000-DP is designed for open and flexible measurement set up with supporting over temperature measurement up to 300°C. Its open platen design makes it possible to upgrade system for voltage higher than 10 kV, in the future and hence provide value for your investment. TS2000-HP and TS3000-HP comes with MPI ShielDEnvironment™, providing wide temperature range from negative temperature as low as -60°C to higher temperature of 300°C and ultra-low-noise measurement capability in addition. TS2500 and TS3500 Series, can be configured as “High-Power” versions as well, in order to provide ultimate automation and flexibility of testing multiple wafers unintendedly.
