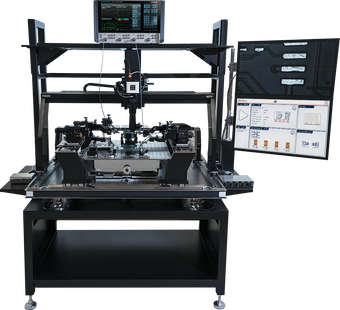

MPI PCB Probe Systems

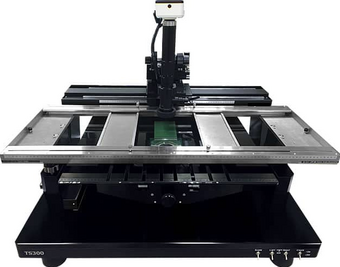

Every MPI manual probe systems can be configured with a variety of different holders for printed circuit boards (PCB’s) in order to provide in addition to on-wafer, versatile, convenient, and accurate Signal Integrity (SI) measurements with single-ended or differential RF probes. Measuring signals at the end of the channel for eye-patterns, deterministic jitter, distortion, TDR (Time Domain Reflectometry) impedance, cross-talk, coupling, and losses, or even S-parameters is easily accomplished.

MPI’s TS150-THZ & TS200-THZ systems extend the frequency ranges up to sub-THz range, making these the most multi-purpose manual probe stations available anywhere.
